Home / Industrial PC / ARM Board / RK3288 Dev Board with HDMI IN & Dual OUT
RK3288 Dev Board with HDMI IN & Dual OUT
RK3288 Dev Board with HDMI IN & Dual OUT
RK3288 Dev Board with HDMI IN & Dual OUT
RK3288 Dev Board with HDMI IN & Dual OUT
RK3288 Dev Board with HDMI IN & Dual OUTRK3288 Dev Board with HDMI IN & Dual OUTRK3288 Dev Board with HDMI IN & Dual OUTRK3288 Dev Board with HDMI IN & Dual OUT

RK3288 Dev Board with HDMI IN & Dual OUT

$ 159.00$ 132.00

Plus 0% VAT
plus shipping

Category: ARM BoardTag: RK3288 HDMI 1-In 2-Out
Volume Quote
PAYPALMASTERCARDVISATAX
Tax Info
ALL prices listed on Geniatech exclude taxes, import fees, and customs duties. Customers may be subject to these fees.

Highlights


• ARM Quad-core Cortex-A17 up to 1.8GHz
• ARM Mali-T764 GPU core
• 2GB DDR3 memory
• 8GB EMMC Flash
• Android 7.1
• 4K/2K Support

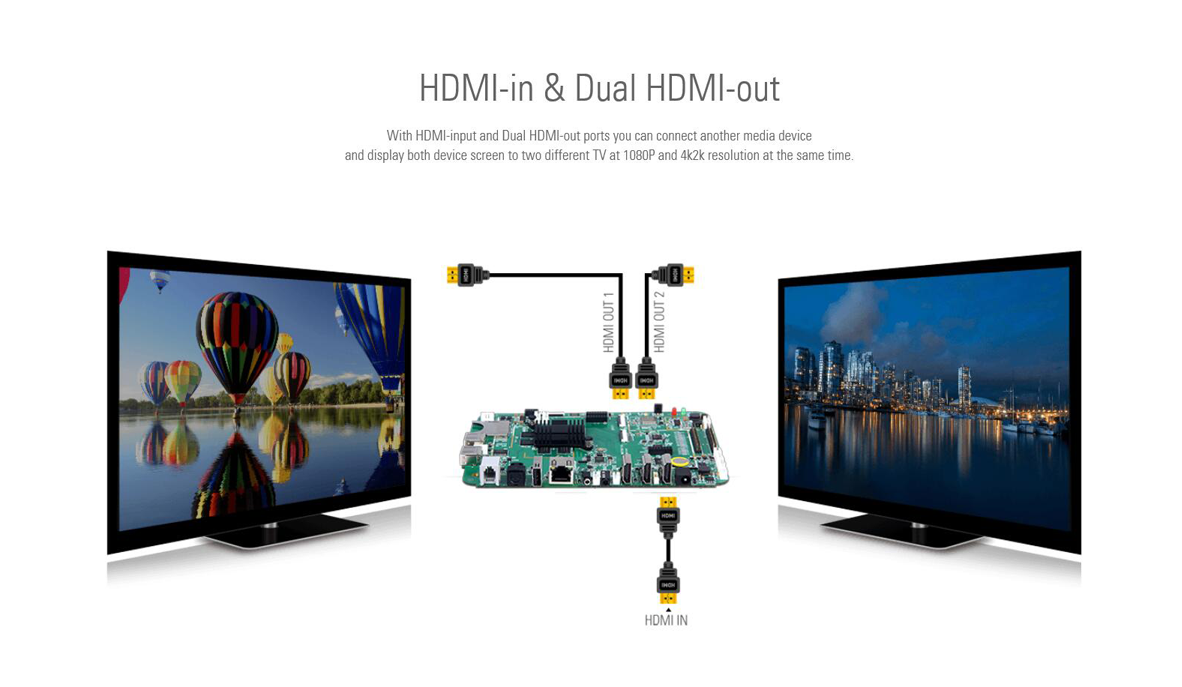

• Dual HDMI output, different display, one upto UHD, another HD
• SDK avaliable, fully controll displaying
  • Features
  • Reviews
  • Learn More

Geniatech Developer Board 3288 is based on Rockchip 3288 Quad core ARM Cortex A17 @1.8GHz CPU, it features a HDMI-Input and dual HDMI-Ouput and is able to display different contents or same content. DB3288 also comes with a rich selection of I/O ports for camera, LCD display, data transfer, data configuration, audio and more.

Specification

GeneralModel: DB3288
System: Android 7.1
CPU: Rockchip RK3288
Core: Cortex A17,Quad Core
RAM: 2GB DDR3 + 8GB EMMC
SD Slot: Max: 32G
Product Details LAN: RJ45 10/100/1000M Ethernet interface
WIFI: IEEE 802.11 AC 2.4G /5.8G
BT: Bluetooth 4.0
USB: USB 2.0 x 3
HDMI: V2.0 1x HDMI input+ 2x HDMI output
Language: Multi-language
Other Functions: CEC Support, Customizable GUI, etc.
Power Adapter AC100 ~ 240V 50/60Hz
DC Input: 12.0V-3A
Dimension and WeightSize: 155*105*15mm
Net Weight: 135g
Package Contents1 x DB3288
