Additional information
| Weight | 0.5 kg |
|---|
Highlights
• Support LVDS/EDP interface LCD Panel
• Quad Core Cortex A17 @1.8GHz
• Support Android 7.1 OS/Linux
• 2GB RAM, 8GB eMMc , external expansion storage SD card (max. 64GB)
• USB, SD, TF external storage, support 4K play
• Built-in WiFi, 100M LAN interface
• Designed for retail, interactive communication
• Quad Core Cortex A17 @1.8GHz
• Support Android 7.1 OS/Linux
• 2GB RAM, 8GB eMMc , external expansion storage SD card (max. 64GB)
• USB, SD, TF external storage, support 4K play
• Built-in WiFi, 100M LAN interface
• Designed for retail, interactive communication

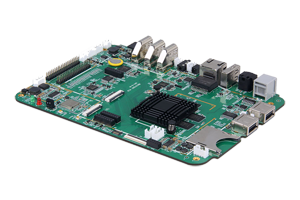

Quad core high performance A17 development board
Geniatech DB5 is based on Rockchip RK3288, advantages of high performance and low power consumption, it features Android 7.1 OS with 2GB LPDDR3, 8GB eMMc flash, support WiFi & LAN, USB, SD/TF card external storage, support 4K playback. Designed for retail, interactive communication
Drive mainstream screen
● Support a variety of screen sizes: from 10.1″ to 65″.
● Different resolution for the user to choose: from 1280*600 to 1920*1080P@60Hz.
● Support a variety of Panel type: Dual LVDS/eDP, Dual VOP optional
Commercial Application
Rich peripheral interfaces, high scalability, industrial design quality, strong reliability, etc, which allow DB5 to be widely used in various commercial applications, like hospitality, restaurant, coffee shop, bank, metro station and other cooperate applications
| No. | Name | Description |
| 1 | DC IN | 12V |
| 2 | SD | SD card *1(max 64GB) |
| 3 | USB OTG | USB OTG2.0*1(support USB upgrade) |
| 4 | USB Host | USB Host 2.0*1 |
| 5 | HDMI OUT | HDMI out*1 |
| 6 | RJ45 | Ethernet 10/100M |
| 7 | WIFI Jack | WIFI Jack*1 |
| 8 | LVDS | For 21.5’’ 27’’ 32’’ 55’’ Panel |
| 9 | EDP | For 15.6’’(30Pin) |
| 10 | Backlight Jack | 4Pin2.0mm |
| 11 | Speaker Jack | 4Pin2.0mm |
| 12 | Mic Jack | 2Pin2.0mm |
| 13 | Touch screen Jack | 4Pin2.0mm |
| 14 | Debug Jack | 4Pin2.0mm |
| 15 | IR Receiver | IR Receiver*1 |
| 16 | RS232 Jack | 4Pin2.0mm |
| 17 | Reset Button | Reset Button*1 |
| 18 | Receiver Jack | 2Pin2.0mm |
| 19 | Power Button | Power Button*1 |
Specifications
| CHIPSET | Rockchip RK3288 | |||
| Processor | OS | Android 7.1/Linux | ||
| CPU | Quad Core A17r4 CPU @ 1.8GHz | |||
| GPU | Mali T764MP | |||
| DDR | 2GB | |||
| EMMC FLASH | 8GB (16G/32G Optional) | |||
| Can support Panel | Panel type | TFT LCD | ||
| Interface | LVDS / EDP (Dual VOP optional) | |||
| Resolution(Max) | 1920*1080 | |||
| NETWORK | Ethernet | RJ45, 10/100M | ||
| WiFi | 802.11.b/g/n | |||
| Bluetooth | BT4.1 (Optional ) | |||
| 3G/4G | Option | |||
| Standby Power | <0.5W | |||
| Interface | SD | SD card *1(max. 64GB) | ||
| HDMI | HDMI out*1 | |||
| USB Host | USB Host 2.0*1 | |||
| USB OTG | USB OTG 2.0*1 | |||
| DC IN | DC IN*1 | |||
| Master Carton | 142*94*11 mm，1pcs/carton | |||
| Adapter | DC12V / 3A | |||
| Accessory | Adapter*1 | |||
