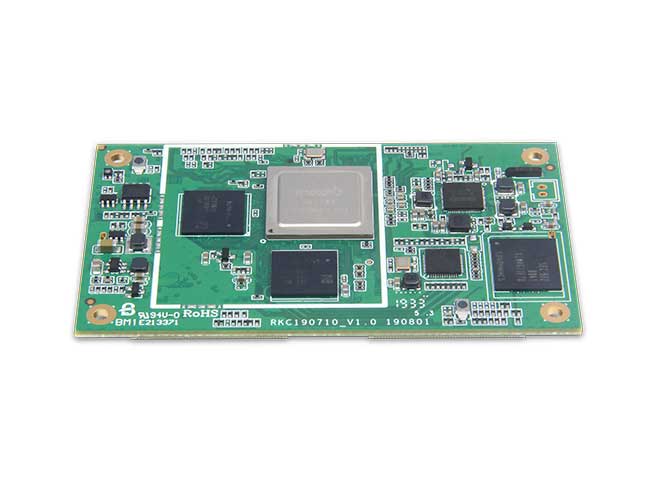

Name: SOM3288 (RK3288)
SKU: 15049
Availability: InStock

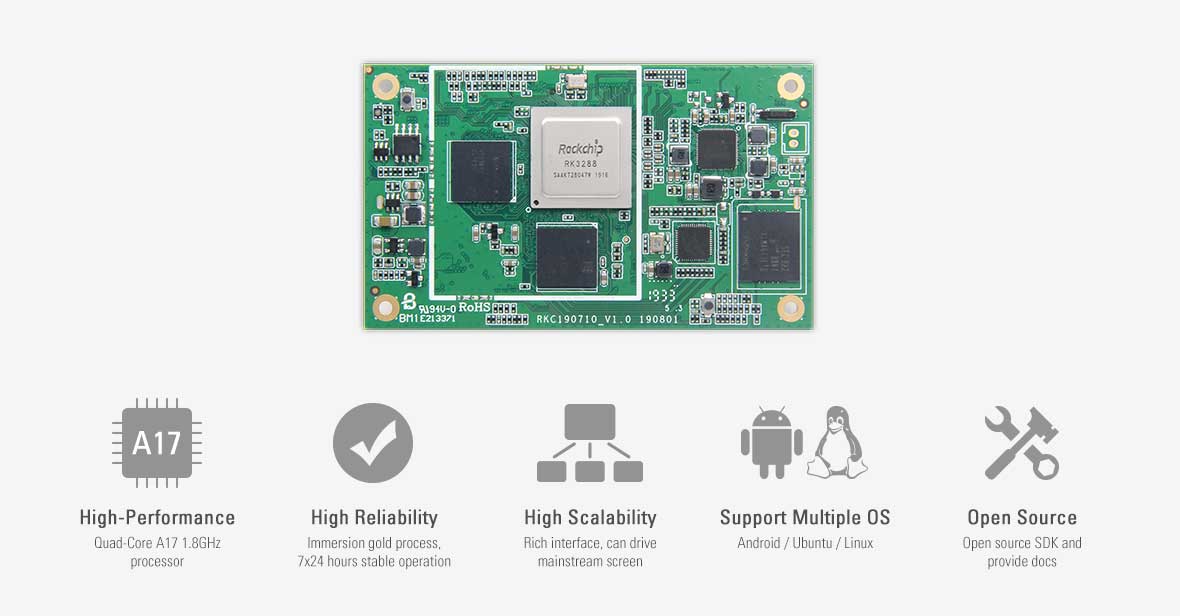

Quad core 64-bit high performance A17 core board

Geniatech CBD3288 is based on Rockchip RK3288, advantages of high performance and low power consumption, it features Android 7.1 OS with 2GB LPDDR3, 16GB eMMc flash, support WiFi & LAN, USB, SD/TF card external storage, support program playback Plastic frame, support wall mount and desktop stand Designed for retail, interactive communication

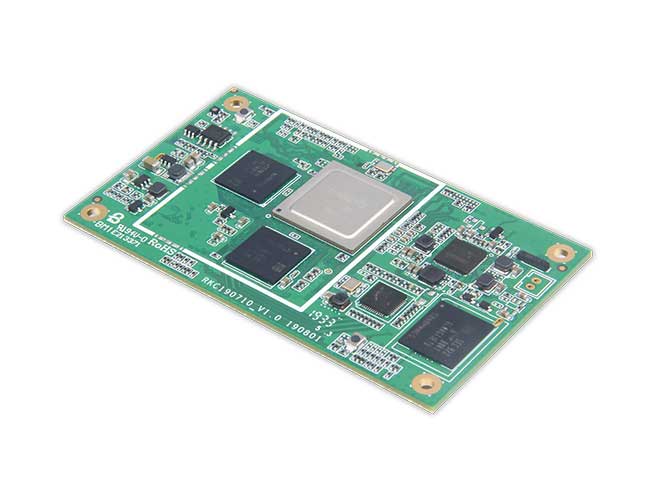

Ultra-high integration, ultra-small size

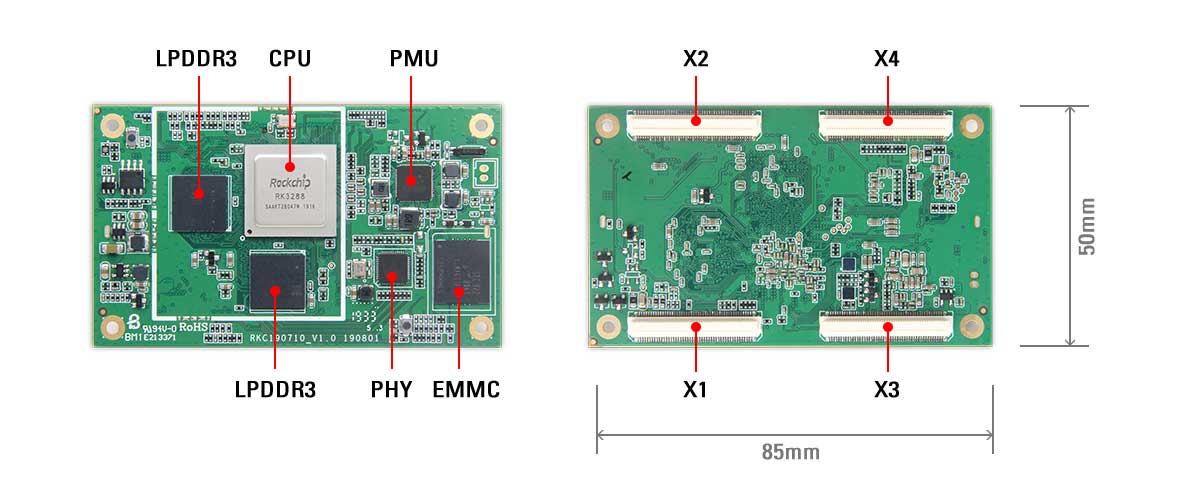

● The core board integrates RK3288, CPU DDR, eMMC, power management module,and Ethernet PHY chip. It has high integration, greatly reduces the design difficulty of the application backplane, and helps enterprises to quickly develop mass production specific application products.
● The design size is only 85x50x6mm, which can be more easily and flexibly deployed on various types of application boards.

Multiple video input and output interfaces

● Camera Interface(DVP interface only):Support up to 5M pixels,Support picture in picture (PIP)
● Display output interface: Embed two VOPs and can choose to output from the following display interface:

+MIPI (Support 1080p @ 60fps output)
+HDMI (Single Physical Layer PHY with support for HDMI 1.4 and 2.0 operation)
+eDP (Support 4Kx2K @ 30fps)
+LVDS (Support LVDS single channel and double channel data transfer, every channel include 5 data lanes and 1 clock lane)

Powerful Haredware Decoding Capability

● Support 4Kx2K @ 60fps decoding(H.265/HEVC)
● Support video encoder for H.264 (BP@level4.0, MP@level4.0, HP@level4.0), MVC and VP8
● Shared internal memory and bus interface for video decoder and encoder

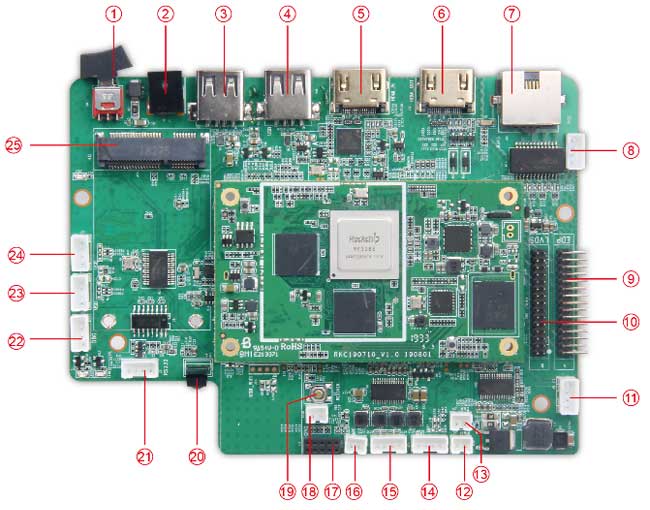

1	Power button	Power button*1
2	DC Jack	12V
3	USB Jack	USB2.0*1
4	USB（OTG）	USB2.0*1 OTG
5	HDMI_IN	HDMI_IN*1
6	HDMI_OUT	HDMI_OUT*1
7	RJ45	Ethernet 100/1000M
8	POWER	12V 4Pin2.0mm
9	EDP	30Pin2.0mm
10	LVDS	30Pin2.0mm
11	Backlight_Power	4Pin2.0mm
12	PWM Jack	2Pin2.0mm
13	Backlight_EN	2Pin2.0mm
14	USB Jack	4Pin2.0mm
15	Speaker	4Pin2.0mm
16	MIC	2Pin2.0mm
17	GPIO	10pin 2.0mm
18	RECOVER	2Pin2.0mm
19	RECOVER_KEY	RECOVER_KEY
20	IR_RECEIVER	IR_RECEIVER
21	RS232 Jack	4Pin2.0mm
22	Debug Jack	Debug Jack
23	USB Jack	4Pin2.0mm
24	USB Jack	4Pin2.0mm
25	3/4G Connector	MSATA

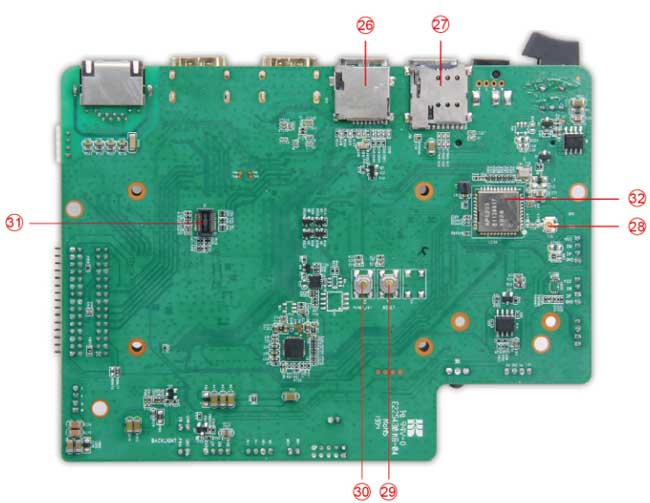

26	Micro SD slot	Micro SD slot
27	SIM Slot	SIM Slot
28	Wif&BTi ant	IPEX Connector
29	RESET KEY	RESET KEY
30	POWER KEY	POWER KEY
31	CAMERA Jack	CAMERA Jack
32	WIFI MODULE	2.4G+5G

Basic Parameters	SOC: Rockchip RK3288 CPU: Quad-core ARM Cortex-A17 up to 1.8GHz GPU: ARM® Mali-T764 GPU core : Support OpenGL ES1.1/2.0/3.0, OpenCL 1.1, DirectX11(W version only) etc. Internal Memory: 2GB LPDDR3 + 16GB EMMC
Hardware Characteristics	Built-in WiFi: 802.11 a/b/g/n/ac WiFi Frequency Range: 2.4GHz, 5GHz Ethernet port: RJ45 10/100/1000Mbps USB Interface: OTGx1 / USB 2.0(host)x2 Display output interface: Embed two VOPs, MIPI, HDMI, eDP, LVDS Expansion connector: Usb2.0 x3, UART x3, Debug x1, SPI x1, SDIO x1(use in WIFI interface), SD x1(Use in SD Card interface), LVDS x2（Mux with eDP interface）, I2C x5, GPIO x4, ADC x3 Camera: ● Support up to 5M pixels ,8bits BT656(PAL/NTSC) interface ● Support picture in picture (PIP) ● 8bits/10bits/12bits raw data interface ● Etc
System Software	Android 7.1
Other Specifications	Size: 85*50mm Power: 5V(the use of SOM3288 on the Carrier board is 12V) PCB Specification: 8 layers
