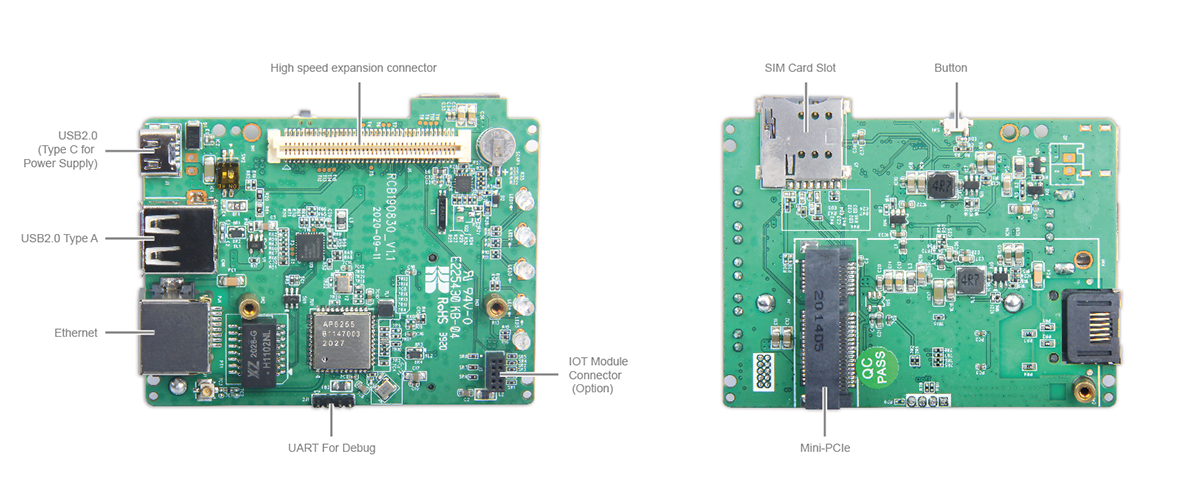

DB360 (i.MX6ULL)

Name: DB360 (i.MX6ULL)
SKU: 18389
Price: 69.00 USD
Availability: OutOfStock

$ 69.00

Plus 0% VAT

plus shipping

Out of stock

Category: ARM Board

Volume Quote

Highlights

• Security Chip on board with highest level encryption.
• SDK for integration with 3rd party IoT cloud solutions: Amazon/Google/Azure
• Full Netcom: Support global LTE/3G/2G. Ethernet And WiFi.
• RTC/ WDT, OTA Firmware Upgrade
• Reserved RF extension interfaces such as ZigBee, LoRa, Z-Wave, BT5.0/BLE
• Support more than 200 Zigbee devices from more than 40 manufacturers.
• It’s widely used in Smart Home and Industry 4.0 Gateway Solution

CPU	NXP i.MX6ULL Cortex-A7
CPU Frequency	792 MHz(up to 900 MHz, 128 KB L2 cache) 900 MHz(optional)
Internal Memory	1G DDR (512M optional) 16-bit LP-DDR2, DDR3/DDR3L
Internal Storage	4GB-8GB eMMC 8/16-bit Parallel NOR FLASH / PSRAM Dual-channel Quad-SPI NOR FLASH 8-bit Raw NAND FLASH with 40-bit ECC
OS	Linux(Yacto/Ubuntu 16.04)
Built-in 2G/3G/4G	Optional LTE for EU LTE for AU LTE for US
Built-in WiFi	802.11 b/g/n/ac 2.4GHz/5GHz
Ethernet port	RJ45 10/100Mbps
USB Interface	USB-A 2.0 x 1(Optional); Type C for Power Supply
SIM Slot	Standard
BT 5.0/BLE	Optional
ZigBee 3.0 Optional	Optional
Z-Wave Optional	Optional
LoRa Optional	Optional
LEDs	GSM, WAN, IoT, Status, Wi-Fi
Industrial grade	-40 to +105
Size (mm)	74*55
Net Weight (g)	35
Power Plug Types	US – Type A(America), EU – Type F(France)/E(Europe)/ G（England)
